$32.02 Add to Cart

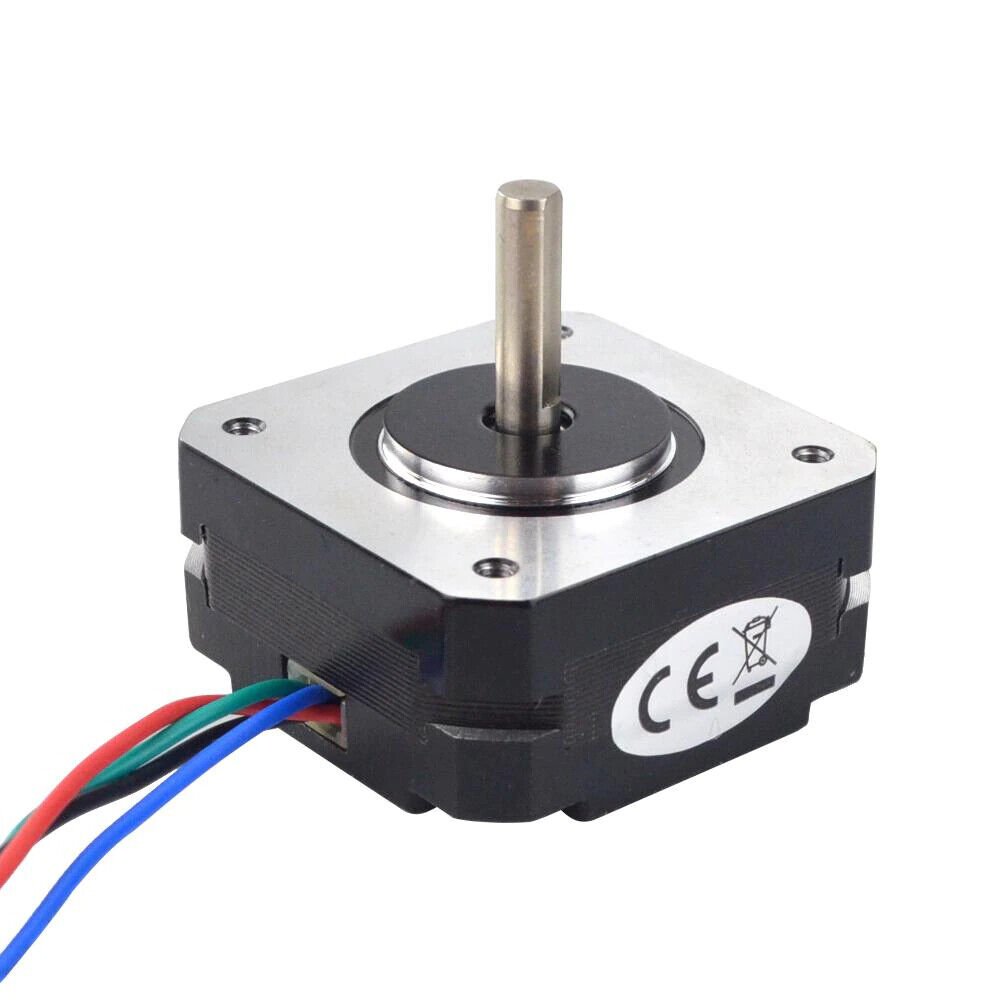

20mm 16Ncm 1A Nema17 Step Motor 4-Lead 17HS08-1004S Short Body Nema 17 Stepper

20mm 16Ncm 1A Nema17 Step Motor 4-Lead 17HS08-1004S Short Body Nema 17 Stepper

3 available

Details

Shipping: Australia: free (more destinations)

Condition: Brand new

  • 20mm 16Ncm 1A Nema17 Step Motor 4-Lead 17HS08-1004S Short Body Nema 17 Stepper
  • 20mm 16Ncm 1A Nema17 Step Motor 4-Lead 17HS08-1004S Short Body Nema 17 Stepper
  • 20mm 16Ncm 1A Nema17 Step Motor 4-Lead 17HS08-1004S Short Body Nema 17 Stepper
  • 20mm 16Ncm 1A Nema17 Step Motor 4-Lead 17HS08-1004S Short Body Nema 17 Stepper
  • 20mm 16Ncm 1A Nema17 Step Motor 4-Lead 17HS08-1004S Short Body Nema 17 Stepper
  • 20mm 16Ncm 1A Nema17 Step Motor 4-Lead 17HS08-1004S Short Body Nema 17 Stepper

20mm 16Ncm 1A Nema17 Step Motor 4-Lead 17HS08-1004S Short Body Nema 17 Stepper Manufacturer Part Number: 17HS08-1004S Motor Type: Bipolar Stepper Step Angle: 1.8 deg Holding Torque: 16Ncm(22 oz.in) Rated Current/phase: 1.0A Voltage: 3.7V Phase Resistance: 3.7ohms Inductance: 4.5mH ± 20%(1KHz) Frame Size: 42 x 42mm Body Length: 20mm Shaft Diameter: Φ5mm Shaft Length: 20mm D-cut Length: 16.5mm Number of Leads: 4 Lead Length: 400mm Weight: 140g NEMA17 STEPPER MOTOR PARAMETERSModelStep AngleMotor LengthRatedCurrentPhaseResistancePhaseInductanceHolding TorqueRotorInertinLead wireWeightShop now(deg)(mm)(A)(Ohm)(mH)(N.m)(g.cm²)(No)(g)17HS13-0404S11.8340.43037mH±20%0.26384230Link17HS08-1004S1.82013.54.5mH±20%0.16154140Link17HS10-0704S1.8250.74.25.5mH±20%0.13204180Link17HS15-1504S1.8391.52.03.9mH±20%0.42594280Link17HS16-2004S11.84021.12.6mH±20%0.45544310Link17HS19-2004S11.84821.43.0mH±20%0.59824390Link17HS24-2104S1.8602.11.63.0mH±20%0.65824500Link A+A-B+B-BlackGreenRedBlue
